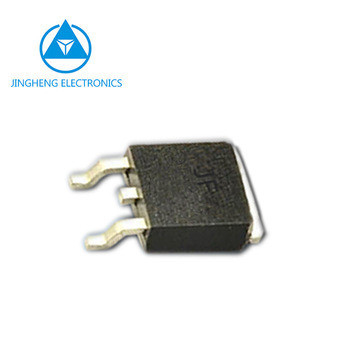

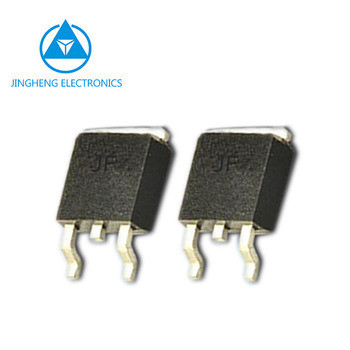

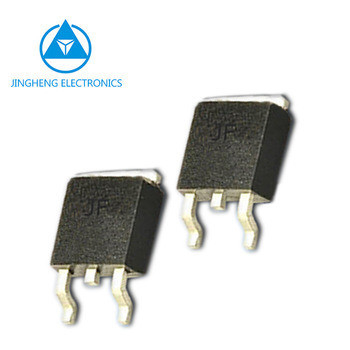

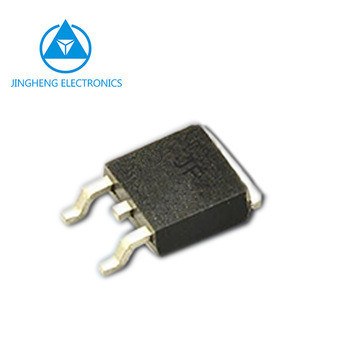

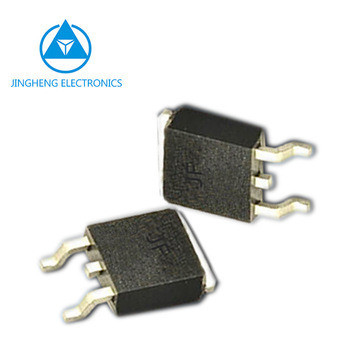

High Power Schottky Diode SR1020D1/SR1040D1/SR1045D1/SR1060D1/SR10100D1/SR10150D1/SR10200D1
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SR10200D1 | Luminous Intensity: | None Luminance |
|---|---|---|---|
| Color: | None Luminance | Structure: | Alloy |
| Material: | Silicon | Transport Package: | Tube |
| Specification: | High Power | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 20.00cm * 40.00cm * 15.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SR1020D1 THRU SR10200D1
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | HBM | Tj | Outline |
| V | A | uA | mA | mA | V | KV | ºC | ||
| SR1020D2 | 20 | 10 | 100 | 5 | 0.60 | 8 | 150 | TO-263 Single chip | |
| SR1040D2 | 40 | 10 | 100 | 5 | 0.60 | 8 | 150 | ||
| SR1045D2 | 45 | 10 | 100 | 5 | 0.60 | 8 | 150 | ||
| SR1060D2 | 60 | 10 | 100 | 5 | 0.75 | 8 | 150 | ||
| SR10100D2 | 100 | 10 | 30 | 3 | 0.85 | 8 | 150 | ||
| SR10150D2 | 150 | 10 | 30 | 3 | 0.90 | 8 | 150 | ||
| SR10200D2 | 200 | 10 | 30 | 3 | 0.95 | 8 | 150 |
Brand: JF
Package: TO-263
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field.
