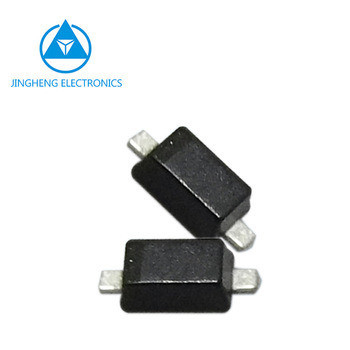

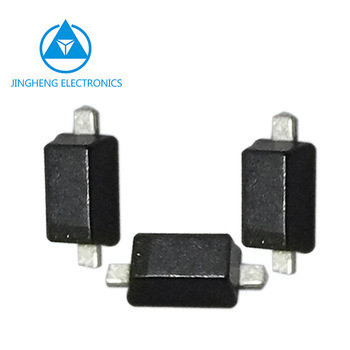

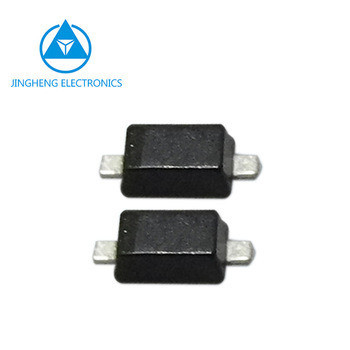

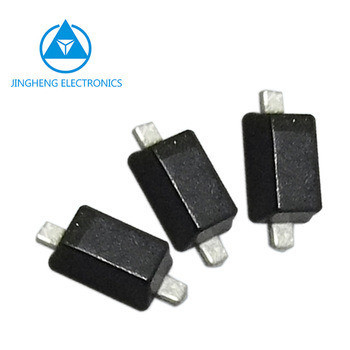

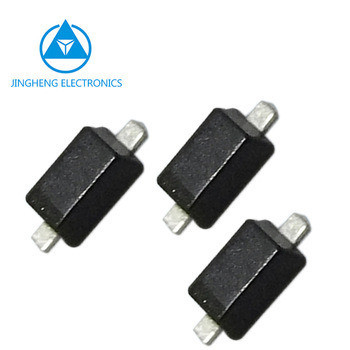

Solutions K22/K24/K26/K2A/K2B/K2D Schottky Diode with Silicon Alloy in SOD-123FL Package
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | K24 | Structure: | Alloy |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Tape Reel |
| Specification: | SMD | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: K22 THRU K2D ( K22/K24/K26/K2A/K2B/K2D )
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | HBM | Tj | Outline |
| V | A | uA | mA | mA | V | KV | ºC | ||
| K22 | 20 | 2 | 100 | 5 | 0.55 | 8 | 150 | SOD-123FL | |
| K24 | 40 | 2 | 100 | 5 | 0.55 | 8 | 150 | ||
| K26 | 60 | 2 | 100 | 5 | 0.75 | 8 | 150 | ||
| K2A | 100 | 2 | 20 | 3 | 0.85 | 8 | 150 | ||
| K2B | 150 | 2 | 20 | 3 | 0.90 | 8 | 150 | ||
| K2D | 200 | 2 | 20 | 3 | 0.95 | 8 | 150 |
Brand: JF
Package: SOD-123FL Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field
