SMC Package Alloy Schottky Barrier Rectifier SS52C/SS54C/SS56C/SS510C/SS515C/SS520C/SS525C
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SS520C | Luminous Intensity: | NO LIGHT |
|---|---|---|---|
| Color: | NO LIGHT | Structure: | Alloy |
| Material: | Silicon | Transport Package: | Tape Reel |
| Specification: | LOW VF FORWARD | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 30.00cm * 40.00cm * 50.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
LOW FORWARD VOLTAGE SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SS52C THRU SS520C
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | HBM | Tj | Outline |
| V | A | uA | mA | mA | V | KV | ºC | ||
| SS52C | 20 | 5 | 100 | 5 | 0.55 | 8 | 150 | SMC | |
| SS54C | 40 | 5 | 100 | 5 | 0.55 | 8 | 150 | ||
| SS56C | 60 | 5 | 100 | 5 | 0.70 | 8 | 150 | ||
| SS510C | 100 | 5 | 20 | 3 | 0.85 | 8 | 150 | ||
| SS515C | 150 | 5 | 20 | 3 | 0.90 | 8 | 150 | ||
| SS520C | 200 | 5 | 20 | 3 | 0.95 | 8 | 150 | ||
| SS525C | 250 | 5 | 20 | 3 | 0.95 | 8 | 150 |
Brand: JF

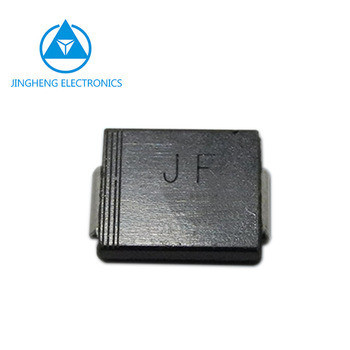

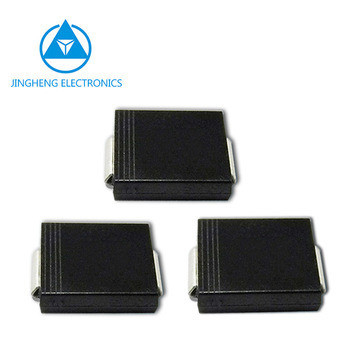

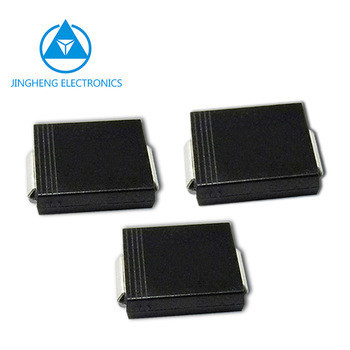

Package: SMC / DO-214AB
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field
